Shielded radiation containment chambers to safely handle and manipulate radioactive isotopes

The work with radiopharmaceuticals in nuclear medicine requires closest attention to detail, particularly to radiation protection and equipment setup.

Product Detail:

1,Satisfy the operation of I131 nuclear drug dispensing and other operations, the working area meets the Class A (ISO 100) level of purification.

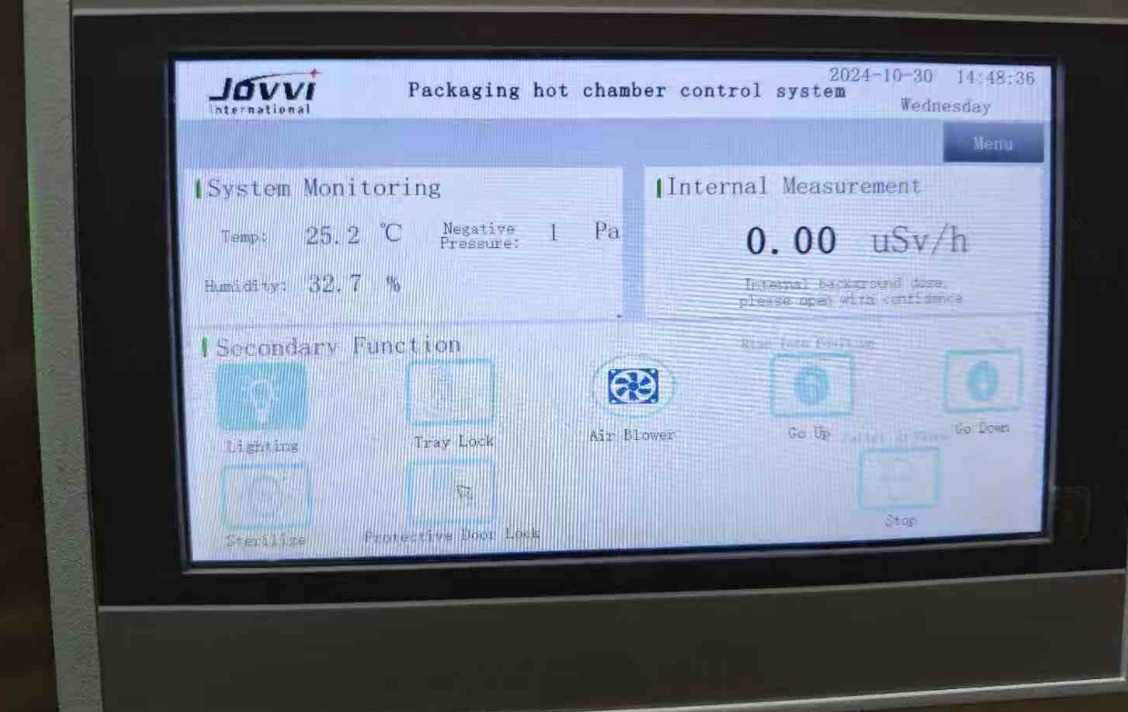

2,Configured with intelligent AI human-machine interaction control platform, non-contact intelligent control of the fume hood's lighting, sterilisation, negative pressure ventilation, drug lifting and lowering table, switch and socket, door and machine interlocks and other functions. Descending table, switch and socket, door and machine interlock and other functions;

3,With vertical laminar flow and negative pressure ventilation system clean arc mirror stainless steel inner cavity, corner around and the top of the R15 arc, surface clean and easy to clean.

4, external dimensions: W1050 * D750 * H2200mm inner size: 840W * 540D * 540mmH

5,Lead equivalent is 50mmPb in front, side and bottom, and 30mmPb in the surface.

6, the front set of lead glass observation window, observation window lead glass shielding effect should be consistent with the amount of lead thickness of 50mmPb

7, the front of the two operator holes equivalent to 50mmPb, and is equipped with a protective cover with a locking device. Surely it can be also customized design Lead equivalent.

8. Exhaust air volume: 800 m³/h

9,Supply air filtration: completely high-efficiency HEPA 99.995% @ 0.5µm (H14)

10, exhaust air filtration: radioactive gas filter adsorption

11,Built-in 1 semiconductor radiation detector, energy range: 50 KeV --- 1.5 MeV, dose range: 0 uSv/h --- 9999 uSv/h

12,Accessories: lighting, ultraviolet lamp, ozone sterilisation device, power socket, etc.

13,Power supply: single-phase 220 V / 50 Hz, 3Kw

Our Hot cell is with high quality product and with good packing wooden case to make each part accessories will be excellent.

Key Features

• Customized Solutions for your Application
• Handling of Alpha, Beta and Gamma Emitters
• PET and SPECT Tracer Production
• GMP Compliance
• Knowledge Transfer from Realized Projects
• Full Care from Concept to Training

RFQ:

    1. We can offer different nuclide Hot cell for hospital project.

    2. As for the hot cell size, we can offer customized design size for you.
